Primatics Precision Stages

Primatics specializes in the design of precision motion equipment. They manufacture a variety of positioning stages, controllers and complete motion solutions. Choose from a list of confi guration options to best meet your requirements. Whether you need short or long travel, the capacity for heavy or light payloads, slow steady scans or quick movements for assembly processes, they offer a solution for your application.

Markets

• High Precision Inspection, Attachment & Alignment
• High Speed Laser Machining
• Wafer Inspection
• Microelectronics Assembly
• Precision Metrology

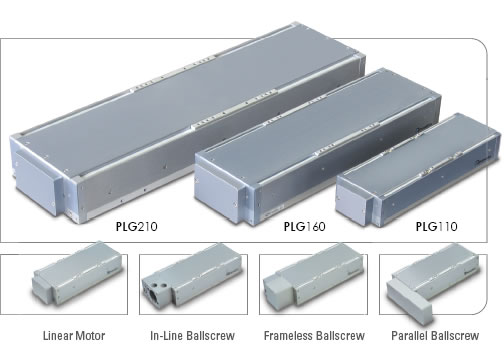

PLG Family

• 110mm (4.3”), 160mm (6.3”) and 210mm (8.3”) cross-sectional sizes
• Four motor drivetrain options
• Internal linear or rotary encoder resolution to 0.1 microns
• Prima-Flex™ internal cable management system for fully adjustable limit and home sensors
• Aluminum or Cast Iron base
• All stages individually tested for accuracy, repeatability, straightness and fl atness
• Multi-axis confi gurations available
• Class 10 cleanroom option

http://www.iptech1.com/pdf/pri1.pdf

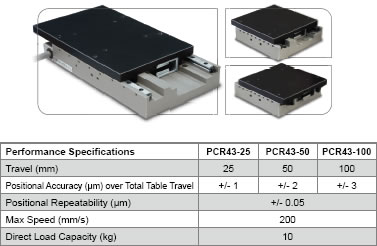

PCR43

• Only 43mm (1.7”) tall
• Center-driven brushless linear motor eliminates
backlash, windup & stiction
• Utilizes precision cross-roller bearings with an
anti-cage creep option
• Drivetrain and feedback systems are non-contact
and maintenance-free
• Multi-axis confi gurations available
• Class 10 cleanroom option

http://www.iptech1.com/pdf/pri2.pdf

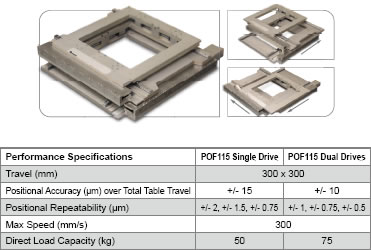

POF115

• Dual-axis motion
• Single or Dual linear motors per axis
• 115mm (4.5”) tall profi le minimizes overall height & tolerance stack
• Open frame confi guration allows access to top and bottom of payload
• Clean, compact design; an advanced cable management system combines all signals into two cables extending from the bottom axis.
• Class 10 cleanroom option

http://www.iptech1.com/pdf/pri3.pdf

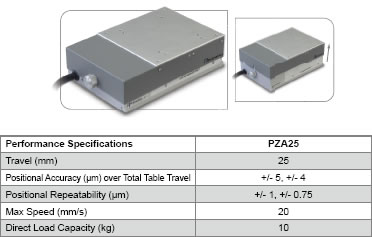

PZA25

• Designed for small incremental vertical movements
• Precision rolled-ballscrew drivetrain
• Low profi le; 65mm (2.6”) in lowered position
• Utilizes a moving-wedge design that converts horizontal movement from a ballscrew to vertical elevation
• Integrated brushless servo motor
• Rotary and linear encoder feedback
• Class 10 cleanroom option

http://www.iptech1.com/pdf/pri4.pdf

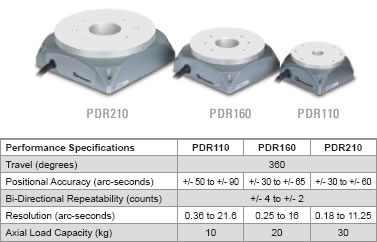

PDR Family

• Direct-drive continuous rotary motion
• 110mm (4.3), 160mm (6.3) & 210mm (8.3) diameter platens
• Integrated brushless servo motor drivetrain eliminates gear wear, backlash and torque variation
• Internal multiplication electronics
• Oversized cross roller bearing and non-contact drivetrain guarantee long, trouble-free operation
• Class 10 cleanroom option

http://www.iptech1.com/pdf/pri5.pdf

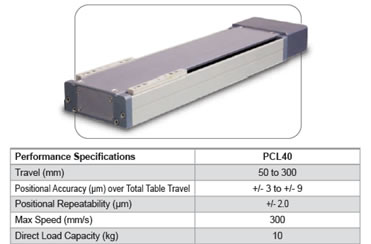

PCL 40

• Travels up to 400mm
• Loads up to 10 kg
• Optional rotary encoder with 1.0 micron resolution
• Two motor options
• Stackable for X,Y motion
• 40mm tall
• English & Metric optical breadboard compatible
• All stages individually tested for accuracy, repeatability, straightness and flatness
• Adjustable limit switches

http://www.iptech1.com/pdf/pri6.pdf

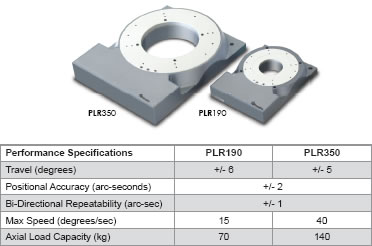

PLR Family

• Limited rotation for angular correction
• 190mm (7.5) & 350mm (13.8) diameter platens
• Precision cross-roller bearings deliver high capacity, excellent rigidity and long life

http://www.iptech1.com/pdf/pri7.pdf

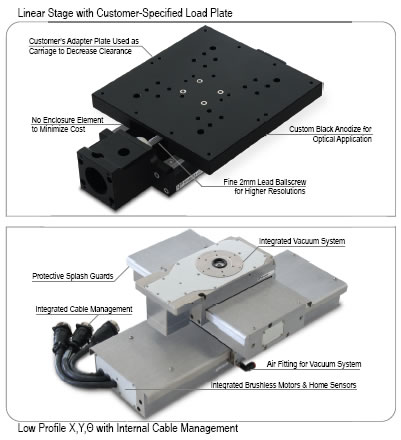

OEM Solutions

Even with thousands of possible confi gurations of standard products, sometimes the right one doesn’t exist for your application and a custom solution is required.

For our standard products, we offer:
• Different finish options
• Special mounting hole patterns
• Custom connector options

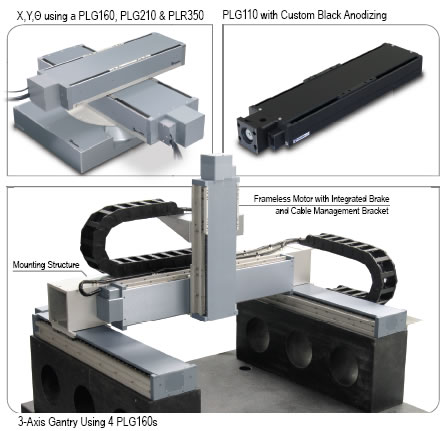

• Multi-axis stacks

Full Custon

In some applications, a custom design from the ground up is necessary. Our design team has developed a toolbox of precision design and manufacturing techniques that enable us to quickly turn back-of-the-envelope sketches into CAD concept models for further analysis. We will leverage relationships with our suppliers to meet your price targets, and we can reduce your time to market by acting as an extension of your engineering team. These factors coupled with our effi cient operation can make custom solutions attractive even
