Gear Boxes

RDE Series

• Less than 1 arc-min Backlash
• Easy motor mounting for all Metric & NEMA sizes
• Very compact with high torsional rigidity
• Integrated Angular bearings for large thrust & overhung moment capacity
• High Ratio availability (up to 233:1) without increasing gearbox size
• Rated Torque to 28,000in-lb with up to 139,000in-lb Peak Torque
• Complete Gear Head version ready-to-mount (grease included)

http://www.iptech1.com/pdf/ngh1.pdf

RDC Series

• Less than 1 arc-min Backlash
• Complete Gear Head version ready-to-mount (grease included)
• Easy motor mounting for all Metric & NEMA sizes
• Hollow Shaft Thru Hole (up to 4.75” diameter) for space saving options
• Very compact with high torsional rigidity
• Integrated Angular bearings for large thrust & overhung moment capacity
• High Ratio availability (up to 258:1) without increasing gearbox size
• Rated Torque to 28,000in-lb with up to 139,000in-lb Peak Torque

http://www.iptech1.com/pdf/ncg1.pdf

AR Series

• Integrated Motor/Drive/Gear System
• Rated Torque: 200 - 14,000 in-lbs.
• Thrust Load: up to 3,300 lbs.
• Speed Ratio: 11:1 thru 171:1 are available
• Absolute or Incremental Encoders
• Built in Fail Safe Brake
• 255 Programmable Move Sequences

http://www.iptech1.com/pdf/ncgh3.pdf

RV Gear Sets

• Zero Backlash Gear Sets
• Integrate into User Housing
• Robotics Arms & Manipulators
• Nabtesco enjoys 70% Robotic Market Share
• Custom Rotary Tables and Indexers
• Telescope Positioning
• Pedestal Mounts and Mirror Positioning

http://www.iptech1.com/pdf/ncgh4.pdf

P-Series Helical

• Standard Delivery 3 days (Maximum 10 working days for custom motor plates.)
• Backlash – < 3 arc/mins
• IP65/FKM Seals & Synthetic Oil lube4life
• Input Speed to 8000 RPM
•Noise Level – as low as 61 dB(A)
•Output Torque up to 17,700 in.lbs
•Washdown Food grade Option

http://www.iptech1.com/pdf/stbr1.pdf

PH/PHA-Series

•Ratios – 4:1 to 121:1
•Backlash – < 1 arc/mins
•90-96% Efficient
•Input Speed to 8000 RPM
•Noise Level – as low as 61 dB(A)
•Output Torque up to 44,290 in.lbs
•Flange Output,Tapered Roller Bearings for High Load Ratings

http://www.iptech1.com/pdf/stbr2.pdf

PHQ/PHQA-Series

•Ratios – 5:1 to 600:1
•Backlash – < 1 arc/mins
•Highest Torsional Rigidity
•Input Speed to 7000 RPM
•Noise Level – as low as 62 dB(A)
•Output Torque up to 57,500 in.lbs
•Flange Output,Tapered Roller Bearings for High Load Ratings

http://www.iptech1.com/pdf/stbr3.pdf

PE-Series

•Ratios – 5:1 to 100:1
•Backlash – < 15 arc/mins
•Cost effective/High Quality Design
•Input Speed to 8000 RPM
•Noise Level – as low as 60 dB(A)
•Output Torque up to 1060 in.lbs
•Standard NEMA Output Adapters Available

http://www.iptech1.com/pdf/stbr4.pdf

C-Series

•Ratios – 2:1 to 276:1
•Backlash – < 20 arc/mins
•Beverage and Food Washdown Duty
•Input Speed to 4500 RPM
•Noise Level – as low as 53 dB(A)
•Output Torque up to 62,000 in.lbs
•Inch or Metric
•One Piece Cast iron Design for Superior Performance

http://www.iptech1.com/pdf/stbr5.pdf

F-Series

•Ratios – 4:1 to 540:1
•Backlash – < 7 arc/mins
•Beverage and Food Washdown Duty
•Input Speed to 4500 RPM
•Noise Level – as low as 53 dB(A)
•Output Torque up to 9,700 in.lbs
•Solid or Hollow Bore, Inch or Metric

http://www.iptech1.com/pdf/stbr6.pdf

PKX-Series

•Ratios – 3:1 to 300:1
•Backlash – < 4 arc/mins
•Beverage and Food Washdown Duty
•Input Speed to 6000 RPM
•Noise Level – as low as 70 dB(A)
•Output Torque up to 17,700 in.lbs
•93 to 95% Efficient
•Highest Achievable Smoothness with Helical Gears

http://www.iptech1.com/pdf/stbr7.pdf

PK-Series

•Ratios – 12:1 to 561:1
•Backlash – < 3.5 arc/mins
•Beverage and Food Washdown Duty
•Input Speed to 6000 RPM
•Noise Level – as low as 63 dB(A)
•Output Torque up to 17,700 in.lbs
•High Load Bearing Output Shaft

http://www.iptech1.com/pdf/stbr8.pdf

PHKX-Series

•Ratios – 3:1 to 300:1
•Backlash – < 3.5 arc/mins
•Single Piece Steel Housing Provide Ultra High Stiffness
•Input Speed to 6000 RPM
•Noise Level – as low as 70 dB(A)
•Output Torque up to 66,430 in.lbs
•High Load Bearing Output Shaft

http://www.iptech1.com/pdf/stbr9.pdf

PHK-Series

•Ratios – 16:1 to 561:1
•Backlash – < 3.5 arc/mins
•Output Flange is ISO 9409 for easy Mount to Rotary Indexing Tables
•Input Speed to 6000 RPM
•Noise Level – as low as 63 dB(A)
•Output Torque up to 11,000 in.lbs
•High Axial/Radial Load Capacity

http://www.iptech1.com/pdf/stbr10.pdf

KS-Series

•Ratios – 16:1 to 200:1
•Backlash – < 4 arc/mins
•95% Efficient & IP65 Sealing
•Input Speed to 6000 RPM
•Noise Level – as low as 62 dB(A)
•Output Torque up to 2,210 in.lbs
•Hollow Bore Option

http://www.iptech1.com/pdf/stbr11.pdf

K/KL-Series

•Ratios – 4:1 to 381:1
•Backlash – < 12 arc/mins
•95% Efficient & IP65 Sealing
•Input Speed to 4500 RPM
•Noise Level – as low as 53 dB(A)
•Output Torque up to 106,000 in.lbs
•Beverage and Food Washdown Duty
•Hollow Bore Option

http://www.iptech1.com/pdf/stbr12.pdf

Gen II Stealth Gearhead "In-Line" PS

• Stealth Whisper Quiet
• Strong...30% more Torque
• Quiet...Less than 68db Noise
• Fast...6,000 RPM Input Speeds
• Plus . . . Over 97% Efficiency
• The Helical Advantage
• Accurate...Less than 3 Arc minutes Backlash
• 8 frame Sizes 40,, to 300mm

http://www.iptech1.com/pdf/gen2.pdf

Gen II Stealth Gearhead "In-Line" PX

• Stealth – The Standard
• Quiet operation...Less than 70db
• High Input Speeds...Up to 5,000 RPM
• High Efficiency...Over 90% efficiency.
• 3 frame sizes 50mm – 100mm
• NEMA standards (23-56)
• High Torque...More than standard planetaries.
• Lowest Backlash...Less than 15 arcminutes
(10 arcminute option)

http://www.iptech1.com/pdf/gen2.pdf

PV Series“In-Line Power and Versatility”

• All Planetary Design
• Low Cost Gearing Solution
• Quiet Operation...Less than 70db
• High Input Speeds...Up to 8,000 RPM
• High Load Radial Bearings
• 3 frame sizes 40mm – 90mm
• NEMA standards (17-34)

http://www.iptech1.com/pdf/pgg3.pdf

Gen II Stealth Gearhead "Right Angle" RS

• Stealth Whisper Quiet
• Strong...30% more Torque
• Quiet...Less than 70db Noise
• Fast...6,000 RPM Input Speeds
• Super Compact Right Angle
• Plus . . . Over 94% Efficiency
• Accurate...Less than 4 Arc minutes Backlash

http://www.iptech1.com/pdf/gen2.pdf

Gen II Stealth Gearhead "Right Angle" RX

• Stealthฎ RX incorporates Parker Bayside''s helical planetary technology in a lower cost package. Available in NEMA and Metric frame sizes, Stealth RX delivers high torque and quiet, smooth operation for less demanding servo applications.
• Multiple NEMA Sizes RX23, RX34, RX42, RX60 , RX90, RX115
• Multiple Ratios 5:1, 10:1, 15:1, 20:1, 25:1, 30:1, 40:1, 50:1, 100:1
• Fast...6,000 RPM Input Speeds

http://www.iptech1.com/pdf/gen2.pdf

Stealth Gearhead“Right Angle” MultiDrive

• Super Compact, right angle design
• Hollow Shaft Option
• Dual Shaft Option
• IP65 protection
• RB Model, RD Model, RT Model
• Hardened Bevel Gears
• Low Backlash... as low as 4 arc minutes

http://www.iptech1.com/pdf/pgg6.pdf

S Series Low Cost Planetary

• Sizes NEMA 17 to NEMA 34
• IP54 Sealing
• Ratios 1 to 100
• Custom Ratios to 10,000:1
• True Planetary Steel Gears
• Motor Flange and Coupling Included

http://www.iptech1.com/pdf/cpg1.pdf

EP High Torque Planetary

• Sizes NEMA 17 to NEMA 34
• IP65 Sealing
• Ratios 1 to 100
• Custom Ratios to 10,000:1
• True Planetary Steel Gears
• Motor Flange and Coupling Included
• Extra Large Shaft for High Torque Applications

http://www.iptech1.com/pdf/cpg2.pdf

PL Precision Planetary

• Sizes NEMA 17 to NEMA 56
• IP65 Sealing
• Ratios 1 to 100
• Custom Ratios to 10,000:1
• True Planetary Steel Gears
• Motor Flange and Coupling Included
• High Precision Gearing Throughout
• Dynamic Shaft Seal at Input & Output

http://www.iptech1.com/pdf/cpg3.pdf

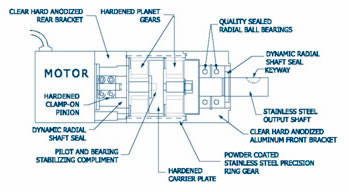

Anatomy of a Precision Gearhead

RP Precision Right Angle

• Sizes NEMA 17 to NEMA 56
• IP65 Sealing
• Ratios 1 to 100
• Custom Ratios to 10,000:1
• Hardened Planetary & Miter Gears
• Motor Flange and Coupling Included
• High Precision Gearing Throughout
• Dynamic Shaft Seal at Input & Output
• Extremely Compact Right Angle

http://www.iptech1.com/pdf/cpg5.pdf

RE High Torque Right Angle

• Sizes NEMA 17 to NEMA 34
• IP65 Sealing
• Ratios 1 to 100
• Custom Ratios to 10,000:1
• Hardened Planetary & Miter Gears
• Motor Flange and Coupling Included
• Extra Large Shaft for High Torque Ouput
• Dynamic Shaft Seal at Input & Output
• Extremely Compact Right Angle

http://www.iptech1.com/pdf/cpg6.pdf

CSG-GH

• Utilizes our proprietary S tooth profile for unrivaled performance
• Zero Backlash
• Available in 5 Frame Sizes
• Peak Torque: 23Nm to 3,419Nm
• Ratios: 50:1 to 160:1
• Accuracy: <1 arc-min
• Repeatability: +/-4 to +/-10 arc-sec
• Cross Roller output bearing

http://www.iptech1.com/pdf/hd1.pdf

CSF-GH

• Quick Connect coupling design allows easy mounting of any servo motor
• Zero Backlash
• Available in 5 Sizes
• Peak Torque: 18Nm to 2,630Nm
• Ratios: 50:1 to 160:1
• Accuracy: <1 arc-min
• Repeatability: +/-4 to +/-10 arc-sec
• Cross Roller output bearing

http://www.iptech1.com/pdf/hd2.pdf

HPGP

• Harmonic Planetary gearhead
• Available in 6 Frame Sizes
• Peak Torque: 12Nm to 3,940Nm
• Ratios: 4:1 to 45:1
• High Efficiency
• Backlash <3 arc-min (<1arc-min available as an option)
• Repeatability +/-20 arc-sec
• High load capacity Cross Roller output bearing
• Quick Connect coupling for easy mounting of any motor

http://www.iptech1.com/pdf/hd3.pdf

HPG

• Continuous backlash compensation
• Available in 6 Frame Sizes
• Peak Torque: 5Nm to 3,200Nm
• Ratios: 3:1 to 50:1
• High Efficiency
• Backlash <3 arc-min (<1arc-min available as an option)
• Repeatability +/-20 arc-sec
• High load capacity Cross Roller output bearing
• Quick Connect coupling for easy mounting of any motor

http://www.iptech1.com/pdf/hd4.pdf

HPG-RA

• Right Angle configuration
• Available in 3 Frame Sizes
• Peak Torque: 150Nm to 2,200Nm
• Ratios: 5:1 to 50:1
• High Efficiency
• Backlash <3 arc-min
• High load capacity Cross Roller output bearing
• Quick Connect coupling for easy mounting of any motor

http://www.iptech1.com/pdf/hd5.pdf

HPN Value Series

• Helical Gearing
• Available in 5 Frame Size
• Peak torque: 9Nm to 752Nm
• Ratios, 3:1 to 31:1
• High Efficiency
• Backlash <5 arc-min (single stage) ,<7 arc-min (two stage)
• Fast Delivery

http://www.iptech1.com/pdf/hd6.pdf
