I-FORCE Ironless Motors

• I-Force Ironless motor design for maximum efficiency, patented, RE34674
• Sizes 2.05” x 0.82” up to 4.50” x 2.00”
• Force up to 1000lbs
• Internal thermal cutout switch protects coil
• Prealigned imbedded digital HED’’s
• Unlimited length of travel
• Can be used in high vacuums
• Peak accelerations up to 15g and speeds to 350 inches/sec
• I-Beam provides high force density and excellent thermal efficiency

http://www.iptech1.com/pdf/plm1.pdf

RIPPED Ironcore Motors

• RIPPED Ironcore Linear Motor for high force applications
• Peak forces to 2100lb
• Unlimited length of travel
• Built in cable strain relief
• Internal thermal cutout switch protects coil
• Digital HED’’s, Home & +/-Limit Sensors incorporated
into Connector Module
• Modular magnet tracks with flush mounted magnet separators
• Patent Pending ultrasmooth anticog technology
• Connector modules allow quick and easy installation

http://www.iptech1.com/pdf/plm2.pdf

I-FORCE Positioners

• Uses I-Force Linear Motors
• Single or dual bearing rail positioners
• Integral high flex cable
• Standard Travel lengths up to 3m
• Precision Ground AL or Steel Base
• Magnetic or optical encoder with resolutions to 0.1 micron
• Over travel limits and home sensor
• Cable track options accommodate customer cables
• Multi-Axis configurations available
• Dual rail positioners have bellows as a standard option

http://www.iptech1.com/pdf/plm3.pdf

RIPPED Ironcore Positioners

• Uses RIPPED Ironcore Linear Motors
• Standard Lengths to 3600mm (144”)
• TR series - Open design
• BR series - Bellows design
• CR series - Covered design
• Integral high flex cable
• Multi-Axis configurations available
• Magnetic or Optical encoder (0.5um, 1um, 5um)
• Connector modules allow quick and easy installation

http://www.iptech1.com/pdf/plm4.pdf

400LXR Table Series

• High Precision Applications
• Repeatability to 1 micron
• Accuracy to 6 microns
• Velocity to 3 m/sec.
• Acceleration to 5 Gs
• Encoder resolution to 0.1 microns
• Long life cable management system
• Motor Sealed and protected with IP54 SST Seals
• Certified accuracy and repeatability
• Quick delivery

http://www.iptech1.com/pdf/plm5.pdf

MX80L Miniature Stage Series

• Low Profile 25 mm tall
• 5G acceleration
• High velocity (2 m/sec.)
• Submicron precision
• Multi-axis platform
• Travels to 150mm
• Cross Roller Bearing
• No Moving Cables
• Dowel holes for repeatable mounting of payload
• Cleanroom and Low ESD options

http://www.iptech1.com/pdf/plm6.pdf

Linear Motors

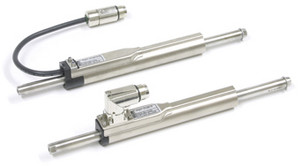

•LinMot linear motors employ a direct electromagnetic principle. Electromagnetic force provides direct linear movement without the use of cams, gears, belts, or other mechanical devices. The motor consists of only two parts: the slider and the stator. The slider is a precision assembly that consists of a stainless steel tube, which is filled with neodymium magnets, that has threaded attachment holes on each end. The stator, consisting of coils, the bearing for the slider, position sensors and a microprocessor board, is designed for use in harsh industrial environments.

•The standard motors are available in 15 different motor configurations with peak forces of from 33 to 580 N (7-130 lbs). A total of over 300 standard motor specifications with strokes lengths of up to 1500 mm (5 feet) are available. In addition, the module design of LinMot® motors allows custom designs even in moderate quantities.

http://www.iptech1.com/pdf/linmot1.pdf (22MB!)
